How to Calculate the Required Airflow for a Dust Filter

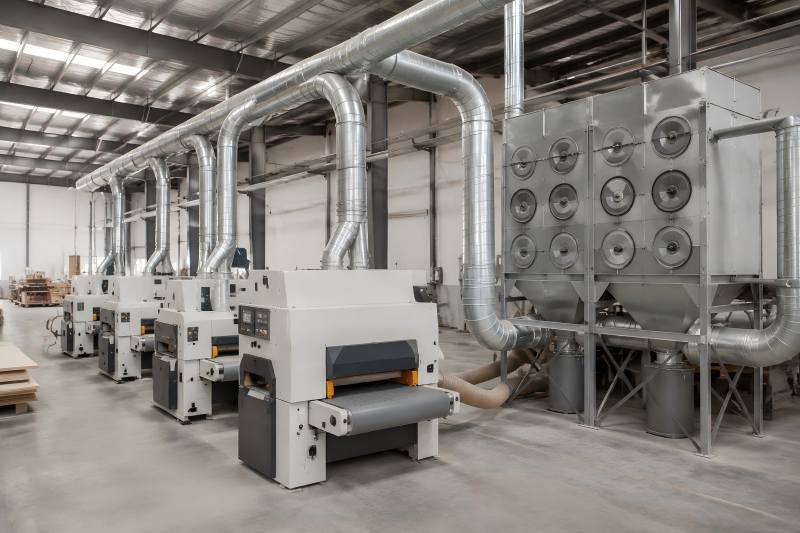

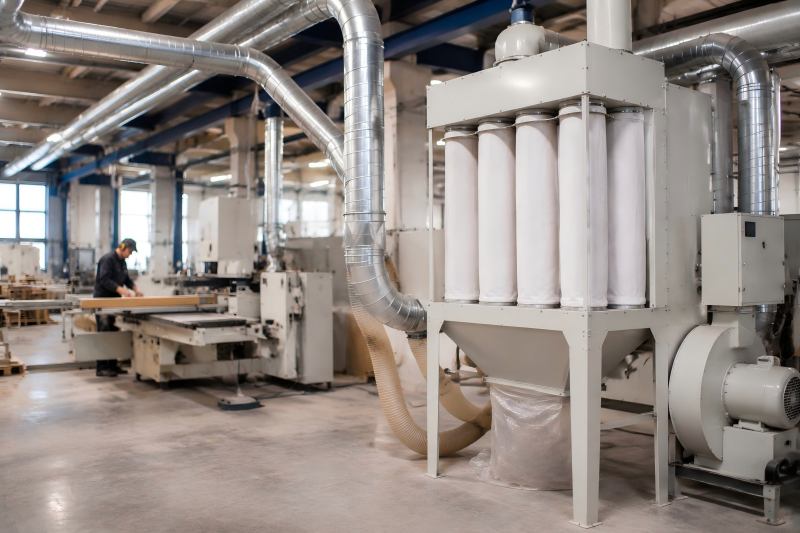

Understanding the Relationship Between Airflow and Dust Filtration

Airflow represents the volume of air moved through the dust filtration system per unit of time. It is usually expressed in m³/h, m³/min, or CFM.

In a dust filter system, airflow has two main purposes:

Capture dust particles before they spread into the working area
Transport collected dust through ducts into the filter unit

A higher airflow does not always mean better filtration. If the airflow exceeds the required level, the system may experience:

Higher fan power consumption
Faster filter loading
Increased noise
More complicated duct balancing
Unnecessary equipment cost

The goal is to provide enough airflow to capture and transport dust while maintaining stable operation.

Basic Formula for Dust Filter Airflow Calculation

The basic airflow calculation depends on the dust capture method.

The general formula is:

Q = V × A

Where:

Symbol	Meaning	Unit
Q	Required airflow	m³/h
V	Required air velocity	m/s
A	Opening or capture area	m²

Because velocity is measured in seconds while airflow is usually expressed in hours, the formula needs a conversion factor:

Q (m³/h) = V × A × 3600

For example:

A dust extraction hood has an opening area of 0.5 m². The required capture velocity is 1 m/s.

Q = 1 × 0.5 × 3600

Q = 1800 m³/h

This means the dust filter system should provide approximately 1800 m³/h airflow for this extraction point.

Step 1: Identify the Dust Collection Method

Different dust sources require different airflow calculations. The first step is identifying the dust emission source.

Common collection methods include:

Collection Method	Typical Application	Airflow Calculation Basis
Local exhaust hood	Grinding, cutting, mixing	Capture velocity × opening area
Enclosed machine extraction	CNC machining, powder processing	Air exchange rate or equipment requirement
Room ventilation	Workshops, warehouses	Room volume × air changes
Pneumatic conveying	Powder transfer	Conveying velocity × duct area

For example, a fully enclosed grinding machine requires less airflow than an open grinding operation because the dust is already contained.

Step 2: Calculate Capture Velocity Requirement

Capture velocity is the air speed needed to pull dust into the collection point.

The required velocity depends on how easily dust becomes airborne.

Fine and lightweight particles usually require stronger airflow because they remain suspended longer. Heavy particles may require lower airflow.

Typical design ranges:

Dust Type	Example Materials	Approximate Capture Velocity
Light dust	Wood dust, textile fibers	0.5–1.0 m/s
Medium dust	Plastic particles, grinding dust	1.0–2.5 m/s
Heavy dust	Metal chips, abrasive particles	2.5–5.0 m/s

The correct value should consider:

Particle size
Dust generation speed
Distance between source and hood
Air movement in the workshop
Required containment level

A sanding operation in an open area may require higher airflow than the same process inside an enclosed cabinet.

Step 3: Calculate Airflow for Multiple Dust Sources

Many industrial dust filtration systems collect dust from several machines.

The total airflow is not always the simple sum of every machine’s maximum airflow requirement. The actual design depends on whether machines operate simultaneously.

The calculation is:

Q total = Q1 + Q2 + Q3 + … × Diversity Factor

Example:

A workshop has three dust-producing machines:

Equipment	Required Airflow
Cutting machine	2500 m³/h
Grinding machine	1800 m³/h
Mixing machine	2200 m³/h

Maximum combined airflow:

2500 + 1800 + 2200 = 6500 m³/h

If only 80% of machines normally operate at the same time:

6500 × 0.8 = 5200 m³/h

The dust filter should be designed around approximately 5200 m³/h instead of 6500 m³/h.

This approach avoids excessive equipment sizing while maintaining practical dust control.

Step 4: Consider Airflow Loss in the Duct System

The airflow calculated at the dust source is not the same as the airflow delivered by the fan. Air resistance reduces system performance.

Pressure loss comes from:

Duct length
Pipe diameter
Elbows and bends
Valves and dampers
Filter resistance
Dust accumulation

A longer duct system requires a higher fan pressure rating to maintain the required airflow.

Example:

System Component	Pressure Loss
Duct network	800 Pa
Elbows and connections	300 Pa
Dust filter	1000 Pa
Safety margin	300 Pa
Total	2400 Pa

The fan should be selected to provide the required airflow at approximately 2400 Pa pressure.

A fan with the correct airflow but insufficient pressure will fail to maintain dust capture performance.

Step 5: Calculate Filter Area Based on Airflow

After determining airflow, the filter area must be matched to the filtration velocity.

The formula is:

Filter Area = Airflow ÷ Filtration Velocity

Example:

Required airflow:

6000 m³/h

Recommended filtration velocity:

1.0 m/min

First convert airflow:

6000 m³/h ÷ 60 = 100 m³/min

Filter area:

100 ÷ 1.0 = 100 m²

The dust filter should provide approximately 100 m² of effective filtration area.

Application	Recommended Filtration Velocity
Fine powder filtration	0.5–1.0 m/min
General industrial dust	1.0–1.5 m/min
Coarse particles	1.5–2.5 m/min

Lower filtration velocity usually improves filter life because dust builds up more slowly on the filter surface.

Common Mistakes When Calculating Dust Filter Airflow

Incorrect airflow calculation can reduce system performance. Several common mistakes should be avoided.

Using Filter Size Instead of Dust Source Requirements

Some users select a dust collector based only on filter dimensions.

However, the filter area does not determine the required airflow. The airflow should first be calculated from dust generation conditions, then the filter size should be selected accordingly.

Ignoring Duct Pressure Loss

A system may appear correctly sized on paper but fail after installation because the actual airflow decreases due to duct resistance.

The fan selection must consider the complete pressure loss of the system.

Selecting Excessive Airflow

More airflow is not always better.

Oversized systems may cause:

Higher electricity consumption
Increased filter replacement frequency
Excessive noise
Material loss during production

A properly balanced system normally performs better than an oversized one.

Not Considering Future Expansion

Industrial production often increases over time. A dust filter system should consider possible additional machines or increased production capacity.

A reasonable safety margin is usually better than designing exactly at the current minimum requirement.

Example Calculation for an Industrial Dust Filter System

Assume a metal processing workshop requires dust extraction from two grinding stations.

Basic information:

Parameter	Value
Number of extraction points	2
Capture airflow per point	2500 m³/h
Simultaneous operation rate	90%
Duct pressure loss	1500 Pa
Filter pressure loss	800 Pa

Airflow calculation:

(2500 × 2) × 0.9 = 4500 m³/h

Required fan airflow:

Approximately 4500 m³/h

Required pressure:

1500 + 800 + safety margin

≈ 2500–2800 Pa

A suitable dust filter system should therefore provide around:

Airflow: 4500 m³/h
Fan pressure: 2500–2800 Pa
Filter area selected according to dust type and filtration velocity

Factors to Confirm Before Selecting a Dust Filter

Before purchasing or designing a dust filtration system, buyers should prepare the following information:

Dust material type
Particle size range
Dust generation rate
Number of extraction points
Machine operating hours
Required airflow
Duct layout
Required filtration efficiency
Dust disposal method
Possibility of future expansion

Accurate information allows suppliers to select the correct filter structure, fan capacity, and cleaning method.

Calculating the required airflow for a dust filter requires more than choosing a larger fan or filter. The correct airflow depends on dust capture conditions, duct resistance, filtration velocity, and actual production requirements.
