Air Slide Hose/ Air Slide Hose For Cement Trailer/ Air Slide Hose For Cement Silo

Air slide hose according to their usage also called bulk cement aeration hose, silo hose, cement air slide hose, cement trailer air slide hose, aeration hose, etc.

The Zonel Filtech was one of the most professional air slide hose manufacturers of China can offer the high strength pneumatic air slide hoses with different sizes and special requirements for air slide convey systems, which made of polyester industrial spun yarn in warp side and polyester industrial filament at the weft side.

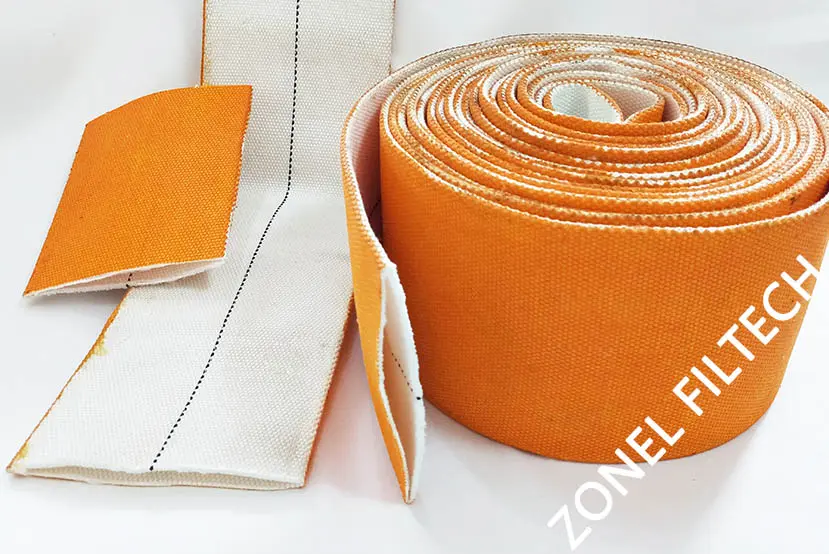

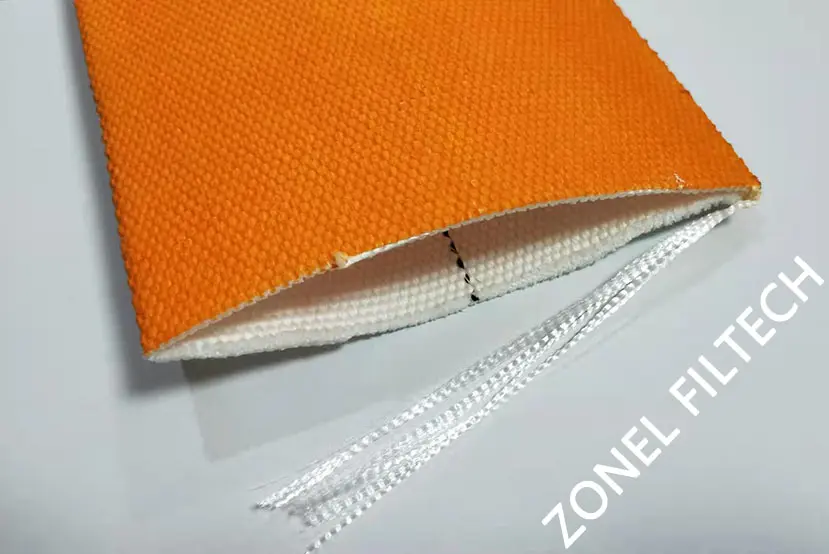

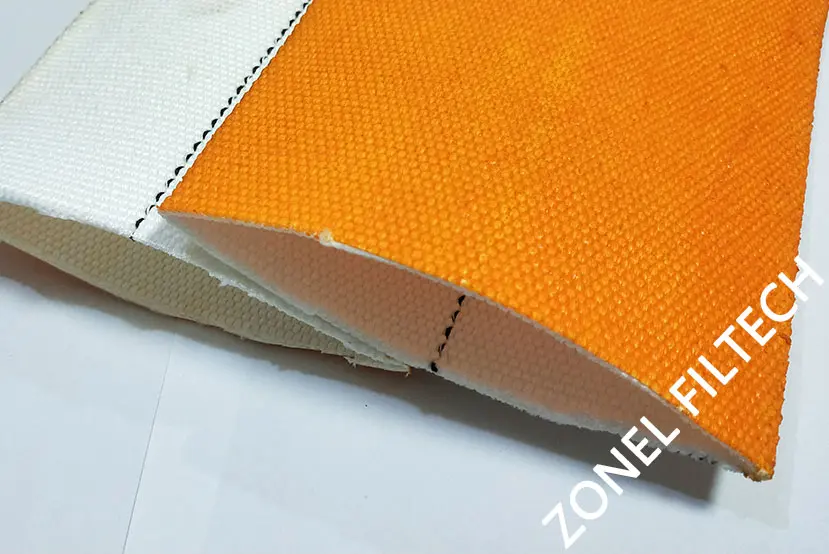

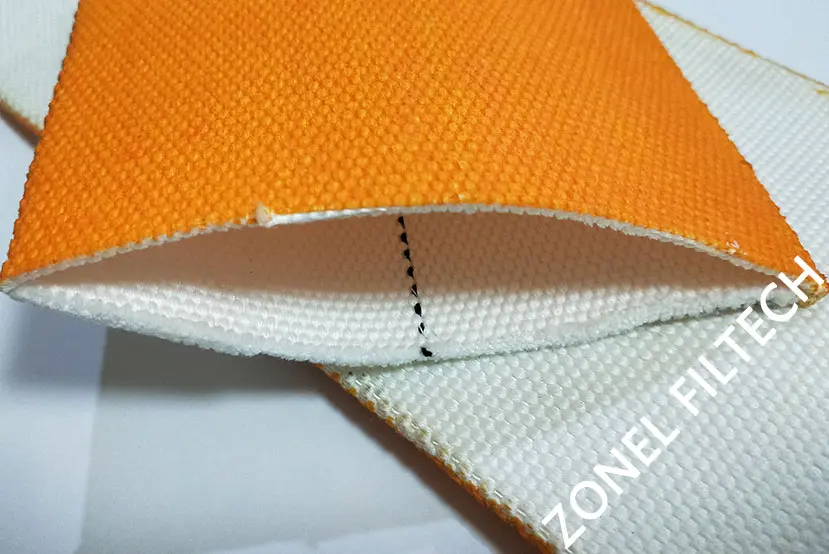

One side of the customized air slide hose with PU/acrylic acide coating, and the other side without. The coating can improve the abrasion resistance of the air slide hose, at the meantime can optimize the air dispreading in the other side without coating so as to fluidize the material easier and make the material with a suitable flow direction and increase the conveying efficiency.

Description

Air Slide Hose/ Air slide hose for Cement trailer/ Air slide hose for cement silo/ air slide canvas hose

General Introduction of air slide hose:
Air slide hose according to their usage also called bulk cement aeration hose, silo hose, cement air slide hose, cement trailer air slide hose, etc.

The Zonel Filtech was one of the most professional air slide hose manufacturers of China can offer the high strength pneumatic air slide hoses with different sizes and special requirements for air slide convey systems, which made of polyester industrial spun yarn in warp side and polyester industrial filament at the weft side.

One side of the customized air slide hose with PU/acrylic acide coating, and the other side without. The coating can improve the abrasion resistance of the air slide hose, at the meantime can optimize the air dispreading in the other side without coating so as to fluidize the material easier and make the material with a suitable flow direction and increase the conveying efficiency.

Relevant products:
Polyester air slide fabric
Aramid/Nomex air slide fabric
Air slide chute
Air slide system

The typical specification of the air slide hose from Zonel Filtech:

Name

Material

Structure

Thickness mm

Temperature °C

Air pressure lose KPa

Diameter mm

Air slide hose

Polyester

Pipe

1.0~2.0

≤150

3~8

30~610

Material details

Warp side: polyester spun yarn; Weft side: industrial filament

Glue

Latex with color

Temperature °C

Continuous ≤150;  instant peaks: 180

Tensile strength

Warp: ≥5000N; weft: ≥5000N

Elongation when install

≤6%

Tensile elongation

Approximate 24%

The properties of the air slide hose from Zonel Filtech

1.One side with PU coating, good for abrasion resistance, with a longer service life; not air permeable, will improve the air permeability of the other side, can help to pneumatic the powders so as convenient for the transportation works.
2.The air slide hose is light and flexible, can adopt to various climate, antioxidant, antiaging, easy to maintenance.
3.The Zonel air slide hoses also with the properties of smooth surface, high strength, stable and equal air permeability, low moisture absorption, not leafing, the powders won’t flow back, easy installing, energy saving, etc.

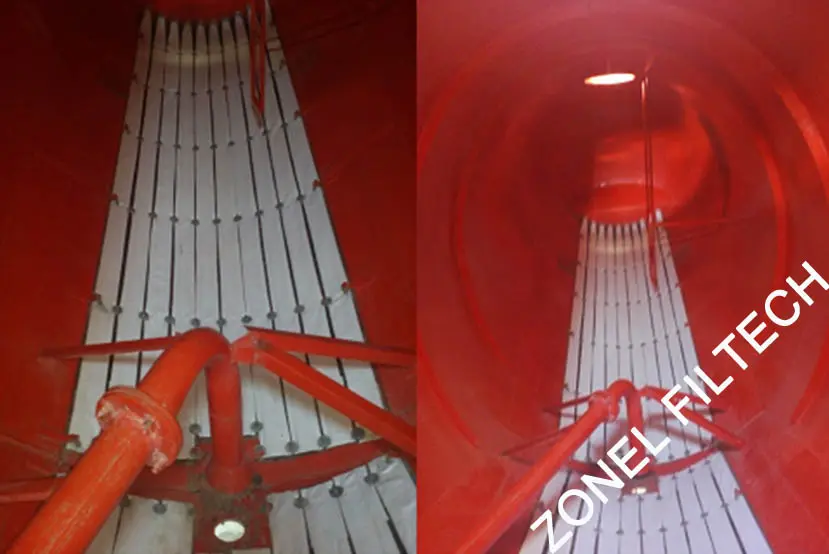

The Zonel air slide hoses are popular in China air slide hoses market due to the advantages of no need the air chamber, powder transfer fast, high efficiency, especially good for cement tanks / cement trailers (cement trailer air slide hose, air slide hose for cement tanker trailer) as well as the bulk cement ship for air slide transfer.

Applications:
For air slide hose conveying systems of cement trailers, bulk cement ships, cement silos, etc.
