Paint Spray Booth Exhaust Filter/ Floor Filter For Spray Booth/ Paint Arrestor Media

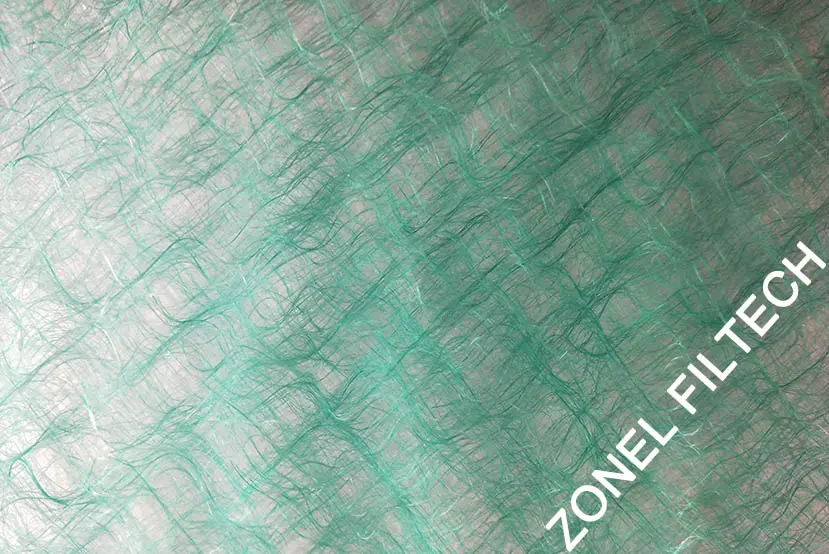

The glass fiber spray booth filter is a kind of thick glass fiber material, which adopted the fiber glass filament with the nonwoven workmanship make the glass fiber in order with different densities (the green color side is lower density, which is dust air side; the white color side is higher density, which is clean air side), when operating, the friction between the glass fiber paint filter mat and dust air will increase the static so as to make the paint booth air filter always with a perfect filtration performance. The thick glass fiber material mainly used for paint spray booth exhaust filter and spray booth floor filter. The pain booth air filter from Zonel filtech with the properties of big air flow, small resistance, big dust load capacity, with a very good filter efficiency for the spray booth paint collection. We can offer the paint spray booth filter in roll or cut to different sizes as requested, and also can offer the ready-made filters with different frames, such as cardboard frame, GI frame or the aluminum frame.
General introduction for the paint spray booth filter, paint stop fiber glass filter, spray booth fiber glass floor filter

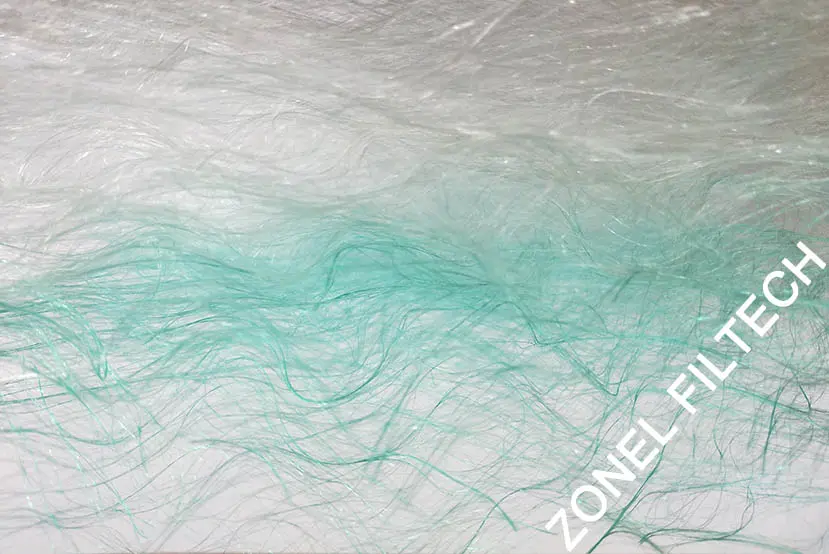

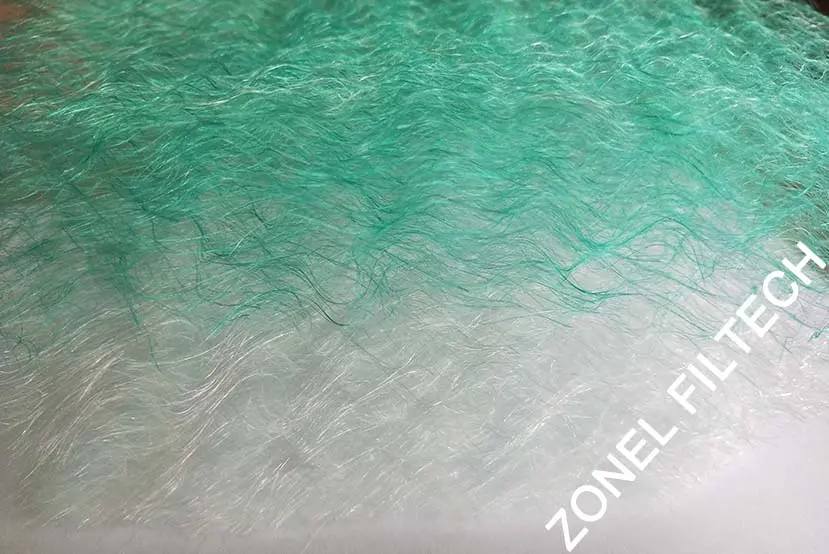

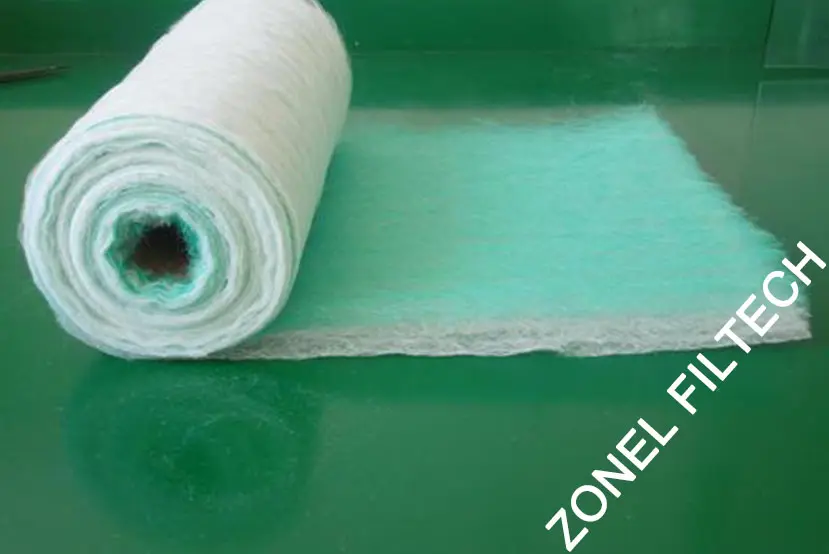

The glass fiber spray booth filter is a kind of thick glass fiber material, which adopted the fiberglass filament with nonwoven workmanship to make the glass fiber in order with different densities (the green color side is lower density, which is dust air side; the white color side is higher density, which is clean air side), when operating, the friction between the glass fiber paint filter mat and dust air will increase the static to make the paint booth air filter always with a perfect filtration performance.
The thick glass fiber material is mainly used for the paint spray booth exhaust filter and spray booth floor filter. The paint booth air filter from Zonel Filtech with the properties of big airflow, small resistance, and big dust load capacity, with a very good filter efficiency for the spray booth paint collection.

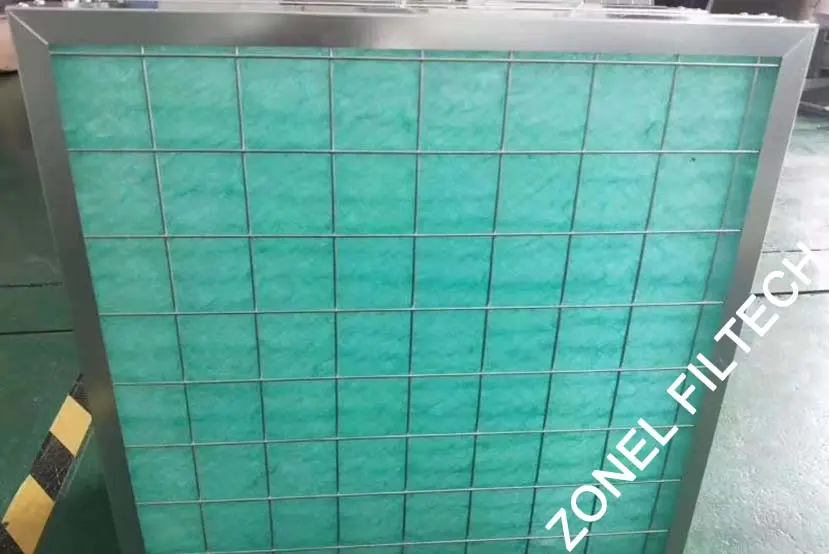

We can offer the paint spray booth filter in roll or cut to different sizes as requested and also can offer ready-made filters with different frames, such as cardboard frames, GI frames, or aluminum frames. If any spray booth fiberglass floor filter or fiberglass paint arrestor is needed, just feel free to contact Zonel Filtech!
Properties of the paint spray booth filter, paint stop fiber glass filter, spray booth fiber glass floor filter
1. The glass fiber spray booth paint arrestor filter material from Zonel Filtech adopted the fiber glass filament, with nonwoven construction, the density of the media from dust air side to clean air side is increase gradually, so as to make the glass fiber paint arrestor material with a bigger dust load and longer service life, also with a good filter efficiency.
2. The floor filter for the spray booth a good tensile strength, good elasticity, especially good for paint dust collection, and lower resistance.
3. The paint booth filter media the good temperature resistance, maximum can up to 170 degrees C.
4. The painting dust arrester media with good humidity resistance, maximum can be used under 100% RH.
5. The glass fiber spray booth filter media with different color designs to define the dust air side, the dust air side is green, and the clean air side is white.

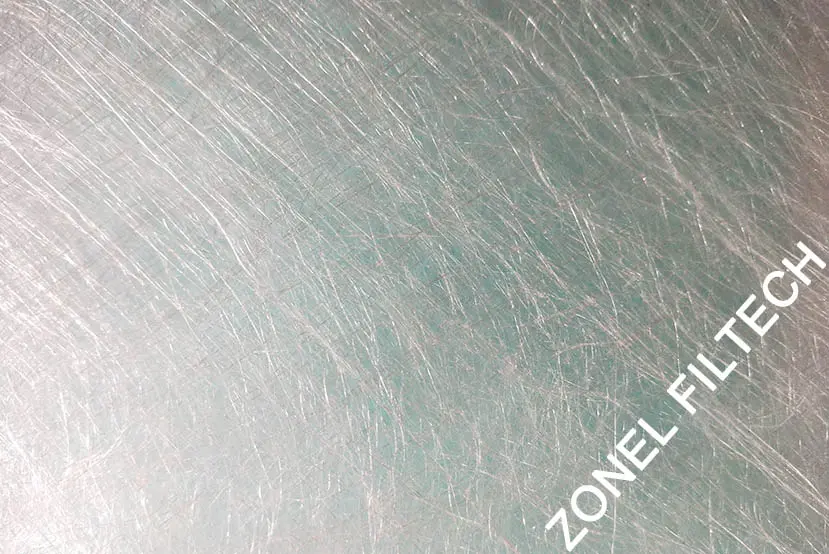

6. The paint spray booth filter mat can be offered with a roll style or ready-made paint arrestor filter.
Applications of the paint spray booth filter, paint stop fiber glass filter, spray booth fiber glass floor filter
Dry painting project area, such as the spray paint table;
Equipped with painting booth of a car factory for repair shop for paint dust exhaust purify system;
Floor filter for paint spray booth.
Product name | Paint spray booth filter material | |||
Offering type | Can be offered with roll type and ready made filters with frame | |||
Material | Glass fiber filament | |||
Max. temperature | 170 degree C | Fire proof | DIN 53438 class Fl | |
Testing report | ||||
Model | Unit | FGP-50 | FGP-70 | FGP-100 |
Filter efficiency | % | 90~95 | 93~97 | 98~99 |
Nominal air flow volume | m³/hr | 2500~6300 | 2500~6300 | 2500~6300 |
Initial air pressure | Pa | 5~30 | 7~40 | 14~60 |
Air speed suggested | m/s | 0.7~1.75 | 0.7~1.75 | 0.75~1.75 |
Thickness | mm | 50 | 70 | 100 |
Weight | g/㎡ | 210~230 | 210~230 | 300~320 |
Dust holding capacity | g/㎡@80Pa, 0.7m/s | 3000~4000 | 3500~4700 | 3900~5050 |
Roll size | W X L, m | 1*20, 2*20 | 1*20, 2*20 | 1*20, 2*20 |
